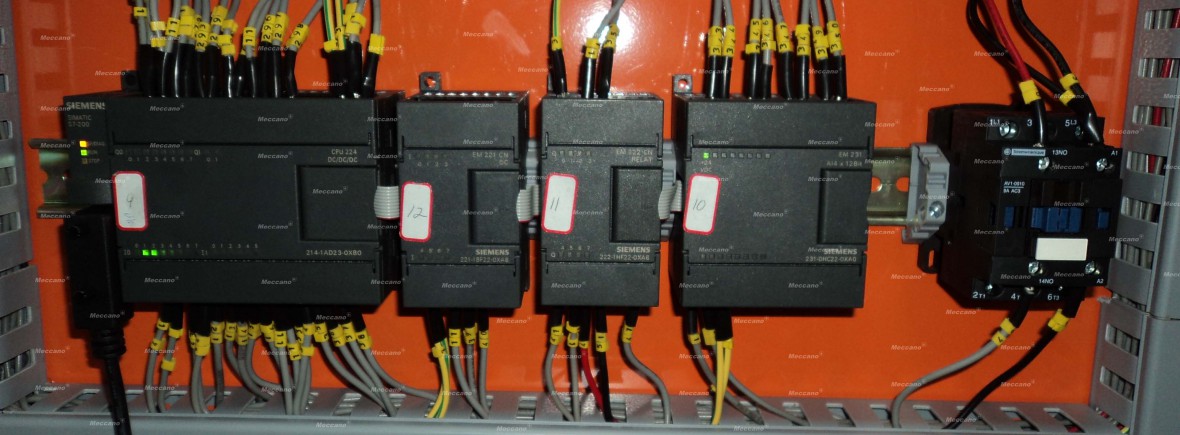

PLC Based Control System

plc based interlock, protection and sequence control system for field Instruments
APPLICATION:
  • Switching ON/ OFF the field instruments based on errors received from the instruments or preceding instruments for Protection.
  • Manual Error Elimination
  • Automation
  • Unattended Operations
  • Machine Tools/ Instruments with Predefined Sequence of Operation
specifications:
  • Control System: PLC CPU
  • Input Signal Format Levels Accepted: AI/DI – 5V/ 10V/ 12V/ 15V/ 24V
  • Signal Conditioning: Hi/ Low Value Trim and Value reading
  • Output Format Levels: DO/ Relay 5V/10V/12V
  • HMI: Touch Panel/ Screen
  • Enclosure: 19″ Rack or Sub Panel (Standard U Size)

PLC-touch-panel-siemens











Please contact us for more information
