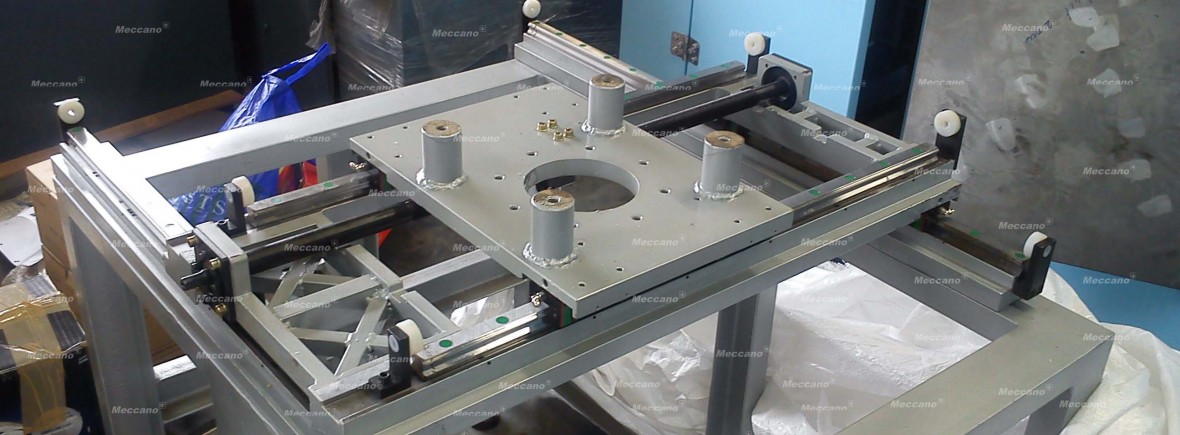

coordinate axes table

APPLICATION:

• Machine Tool X-Y Axes
• Automation
• Material Handling

SPECIFICATIONS:

• Load carrying Capacity: 1000 kilograms
• X Y axes Stroke: 400 X 500 mm
• Guiding System: Linear Motion Guides
• Drive: Lead Screw 5 mm pitch, Hand Wheel Drive
• Slide Design: Hollow; Opening 150 mm diameter
• Supporting Structure: Frame type – Movable or Mountable on another linear Motion Guiding System
• Over all Size: Approximately 1025 X 850 X 650 mm
• Overall Weight: Approx 200 kilograms

SPECIAL FEATURES OF THE SYSTEM:

• No obstacles in Material handling area below the slide. Can provide clamping at specific datum in order to avoid overhead loads
• Rigid and Robust Slides with negligible deflection on load

POSSIBLE SYSTEM INTEGRATION:

• Motor Drive – AC Ind/ AC/DC Servo Stepper
• With 2 Axes Controller
• With Linear Scales/ Encoder for close loop system
• With Work table
• With Centralized Lubrication System
• Base frame with trolley manual/ motorized driven

Please contact us for more information
