MICRO CONTROLLER based high temperature three channel liquid/ semi solid dispensing machine

application:

• In Medical/ Chemical application
• In Food Industry

specifications:

• Fluid Dispense: Paraffin Based or Clarified Butter Liquid or Semi Solid Compounds
• Maximum No of Channels: Three (3)
• Storage Capacity of Each Channel: 15 liters
• Temperature Range: 0 to 100 deg Celsius (typical dispensing settable range 70 to 80 deg C)
• Maximum Die size: 300 x 250 mm (Multi Cavity Customized)
• Approximate Machine Area & Height: 1500 X 1500  and height 1600 mm

 special features:

• Programmable discharged for achieving exact weight of Product
• Continuous Close Loop Temperature System
• Low Level Liquid Sensor for safety
• Double Filtration for avoiding any solid particle contamination
• Protection against overheating in order to maintain the properties of liquid
• Compact foot print
• OV/UV Protection
• Mode of Operation: Auto/ Manual

sub systems/ accessories:

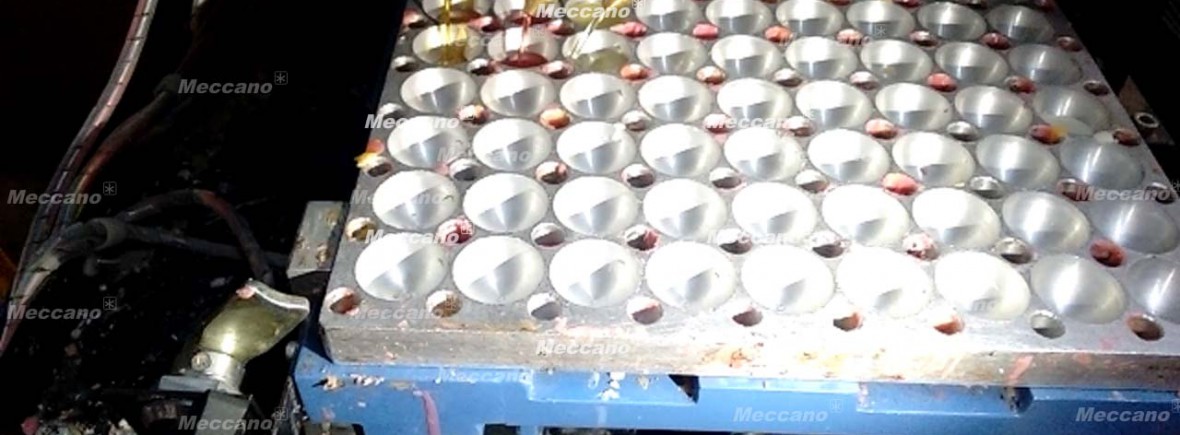

• Multi cavity die Plate – Customized for Size and Shape of cavity
• X-Y Axes Coordinate table
• Electrical Oil Heating System with Low Level Cutoff and with Agitator for mixing
• Flexible Tube Heating System with common/ differential Temperature Control
• Industrial Freeze for fast curing of Dispensed

Please contact us for more information.
